Basic Info.
Model NO.
CT-MB12RHZ02
Type
IP Camera
Sensor
CMOS
HDMI Format
8MP Resolution
Kind
2.7-13.5mm Motorized Lens
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance
50m
Resolution
3840X2160
Video Compression
S265/H.265/H.264
Human Detection
Support
Poe
Support
SD Card Slot
Max Support 512g
Inner Mic
Support
Speaker
Support
Waterproof
IP67
Transport Package
Carton
Specification
Vandal Proof
Trademark
Camsight
Origin
Made in China
HS Code
8525891900
Production Capacity
2000000PCS/Year
Product Description

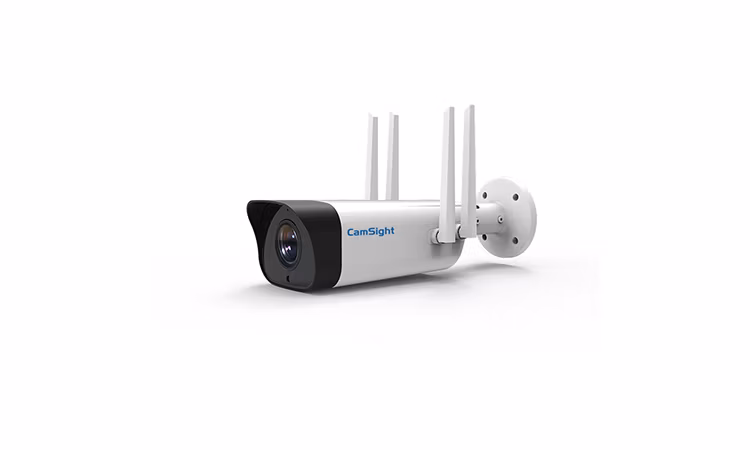

U Series 8MP Full HD Bullet IP Camera
- 8MP(3840x2160) Resolution - S265 Video Compression Technology
- 2.7-13.5 Motorized Lens - IR LED(Distance:50m/164ft )
- Onboard SD Card Slot up to 512GB Support - Built-in 802.3af Compliant PoE
- Built-in Audio and Alarm I/O - IP67 WaterProof
- Supports 3D Digital Noise Reduction and WDR - Supports Smart IR Technology
- Supports Onvif,RTSP Protocol - Supports Smart VCA
Specification
| Video | Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min.illumination | 0Lux/F1.4(IR ON);Color:0.02Lux/F1.4,B/W:0.002Lux/F1.4 | |
| IR Distance | 50M/164ft | |
| Electronic Shutter | Auto/ Manual(1/5~1/100000), FLK | |
| Day/Night | ICR switch, auto, color, B/W, ext | |
| Lens | 2.8mm lens | |
| S/N Ratio | ≥50db (AGC OFF) | |
| WDR | TWDR(Off/ Low/ Middle/ High) | |
| 3DNR | Off/ Low/ Middle/ High/ Higher | |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation) | |
| Slow Shutter | Off/On | |
| Exposure Control | Auto/ Manual | |
| Auto/ Manual | Brightness, Contrast, Saturation, Sharpness, Hue | |
| Human Detection | Detection Quantity | ≤5 Person |
| Humanoid Size | Humanoid Pixel≥40X40 | |
| Detection Ratio | ≥99% | |
| Detection Method | Image Detection During Day or Night with Warm Lights | |
| Network | Video Compression | Smart H.265/H.265+/H.264 |
| Encoding | Main:3840x2160@20fps Sub:D1(720*576),VGA(640*360) | |
| Max. Resolution | 3840X2160 | |
| Video Bit Rate | Constant bit rate, variable bit rate (16kbps~8000kbps) | |
| Video Type | Complex stream/ Video stream | |
| Audio Compression | G.711u/ G.711A 64Kbps | |
| ROI | Support 4 zones, multi-stage level | |
| Protocol | TCP/IP,UDP,HTTP,DHCP,RTMP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP | |
| Browser | Support IE Edge, Chrome, Firefox, Safari | |
| Video Preview Meanwhile | 6 | |
| User Permission | User add/ modify/ delete, permission management | |
| Privacy Mask | 4 zones | |
| Safe Mode | Authorized user name&password,HTTPS encryption and AES encryption | |
| Event Linkage | Snapshot,FTP upload,Email sending,alarm output linkage | |
| ANR | Support, match with NVR | |
| Device Exception Detection | Network disconnected,IP conflict,illegal access alarm | |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional | |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution | |
| Interface | Network | Ethernet 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Intelligent VCA | Video Analysis | Area Intrusion,Loitering,Line Crossing Detection,Absent alarm, Vehicle Illegal Parking,RetroGrade Detection |
| Environmental | WorkingTemperature | -20ºC∼55ºC |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3at) / DC 12V±10% | |
| Power Consumption | 7W MAX, 13W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing |
Honors
FAQ
Q: Do you support OEM?
A: Of course,we are professional OEM/ODM manufacturer.
We support customized logo print on porducts,package,and software GUI
Q: How is the delivery time?
A: For sample order need 3-5days, for mass order time can be negotiate.
Q: How can we be your distributor?
A: According to different area, product models and quantity to evaluate. Kindly contact us for detail negotiation.
Q: What about your Warranty?
A: 2 Years
Q: Do you have any MOQ limit?
A:Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.
